Features

• Width: 4.5
• Height: 7.7
• Diameter: 9.0
• Weight: 0.32
• Power: 4000.0
• Voltage: 440.0
• Amperage: 25.0
• Material: Composite
• Colour: Green
• Location: Door
• Power source: Cabled
• Power: AC
• Contact type: Normally open
• Installation: DIN rail

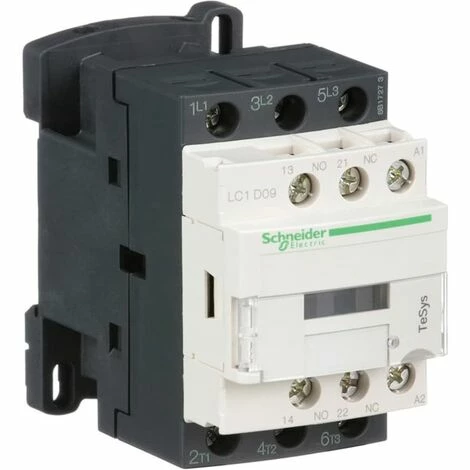

Schneider Electric: Electrical Contactor, TeSys D, 9A 110V 50/60Hz

TeSys D contactors for motor control up to 75kW at 400V, in category AC-3.

Features and Benefits:
-Connect easily with screw clamp terminals and lugs (can be panel mounted with screws or DIN Rail mounted)
-Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
-Built-in auxiliary contacts for added switching capability
-Bidirectional peak limiting diode suppressor to protect the coil

Typical Applications:
-Motor control
-Resistive load

Notes:
-18 months manufacturer warranty
MPN: 3389110348798
EAN: 3389110348798

Electrical Contactor, TeSys D, 9A 110V 50/60Hz Attributes:

Contact Points:	3 NO
Current Rating:	9A
MFR Part No.:	LC1D09F7
Maximum Operating Temperature:	60°C
Minimum Operating Temperature:	-5°C
Model Series:	TeSys
Number of Poles:	3 NO
Overall Depth:	84mm
Overall Height:	77mm
Overall Width:	45mm
Power Rating:	4kg/mm
Voltage Rating:	110V
