Features

• Diameter: 12.0
• Power: 3000.0
• Voltage: 110.0
• Amperage: 12.0
• Material: Plastic
• IP rating: 20
• Location: Door
• Power source: Cabled
• Power: AC
• Contact type: Normally open

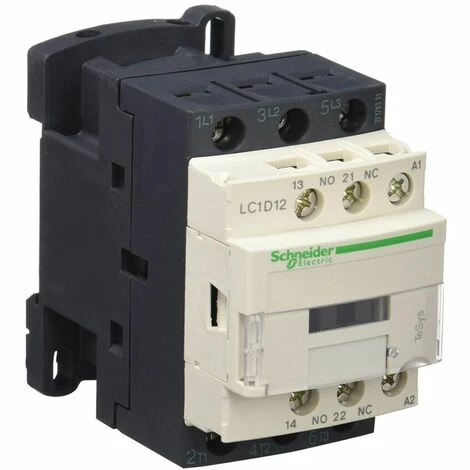

Schneider Electric: Electrical Contactor, TeSys D, 12A 110V 50/60Hz

TeSys D contactors for motor control up to 75kW at 400V, in category AC-3.

Features and Benefits:
-Connect easily with screw clamp terminals and lugs (can be panel mounted with screws or DIN Rail mounted)
-Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
-Built-in auxiliary contacts for added switching capability
-Bidirectional peak limiting diode suppressor to protect the coil

Typical Applications:
-Motor control
-Resistive load

Notes:
-18 months manufacturer warranty
MPN: 3389110349221
EAN: 3389110349221

Electrical Contactor, TeSys D, 12A 110V 50/60Hz Attributes:

Contact Points:	1 NO + 1 NC
Current Rating:	12A
MFR Part No.:	LC1D12F7
Maximum Operating Temperature:	60°C
Minimum Operating Temperature:	-5°C
Model Series:	TeSys D
Number of Poles:	3 NO
Overall Depth:	84mm
Overall Height:	77mm
Overall Width:	45mm
Power Rating:	5.5kg/mm
Voltage Rating:	110V
