Schneider Electric Easy9+ EZ9ES2R7R7CMCU Consumer Unit 2+7+7 2x100A RCD + 8x MCB

Features

• Voltage: 230.0
• Material: Metal
• Colour: White
• Shape: Point
• Location: Door
• Power source: Cabled
• Fixing method: Projection, applique
• Installation: DIN rail
• Electrical connectivity type: DIN

Schneider Electric Easy9+ 2+7+7 100A Switch, 100A RCDx2 Consumer Unit

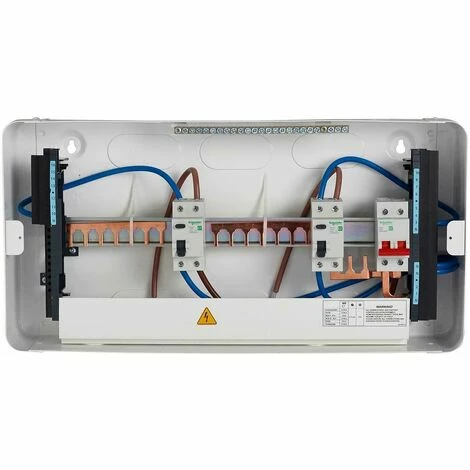

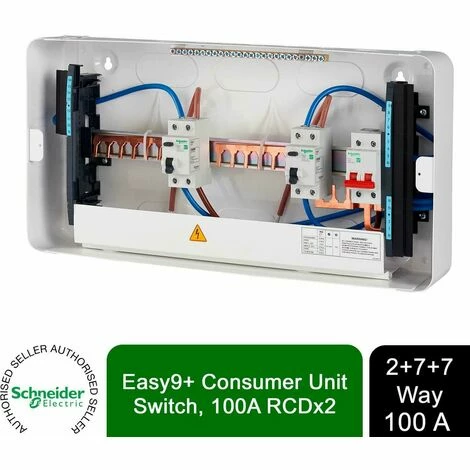

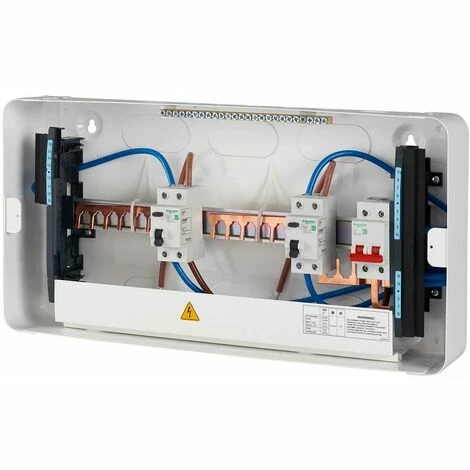

The Schneider Electric EZ9ES2R7R7CMCU is a 2 + 7 + 7 Dual 100A residual current device, High Integrity Metal Clad Consumer Unit

Features:

• Complete with 100A main switch and 2 x 100A RCDs
• Multiple cable entry points and rear knock out slots
• Fixing holes with level adjustment
• Securely fixed DIN rail
• Earth terminal block and neutral terminal blocks fitted as standard
• Secure raised busbar shield
• Reversible door
• Complies with Amendment 3 regulations

Specifications:

• Board Configuration: 2 + 7 + 7
• Colour: White
• Current Rating: 100A
• Door Type: Bottom Hinged
• Incoming Device: 100A Isolator
• Material: Metalclad
• Mounting: Surface
• Number of Modules: 22
• Number of Outgoing Ways: 16
• Packaging Types: Each
• Product Range: Easy9+
• Rcd Rating: 100A
• Rcd Type: AC
• Surge Protection Fitted: No
• Surge Protection Ready: No
• Voltage Rating: 230V
• Voltimum+Points: 273

Package Includes: 1x Schneider Electric Easy9+ Consumer Unit
