Schneider Electric Easy9 EZ9ER8R8CMCU Consumer Unit 8+8 2x100A Main Switch Metal

Features

• Voltage: 230.0
• Material: Metal
• Colour: White
• Shape: Point
• Location: Door
• Power source: Cabled
• Fixing method: Projection, applique
• Installation: DIN rail
• Electrical connectivity type: DIN

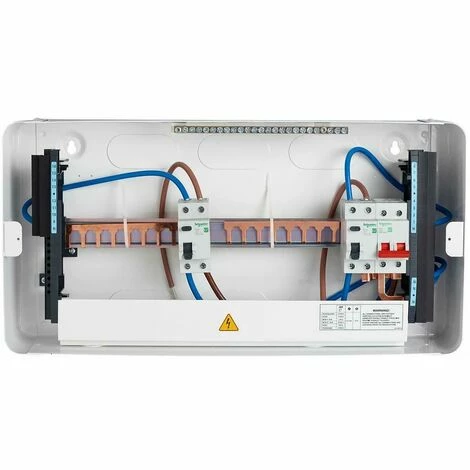

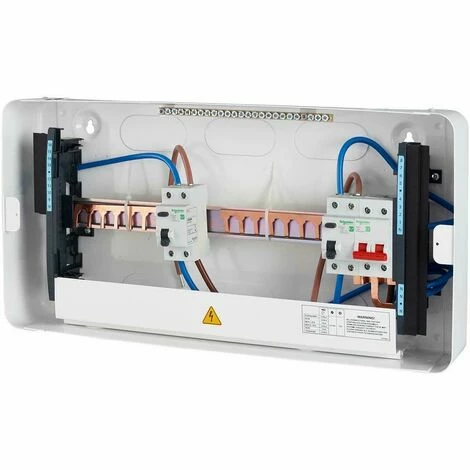

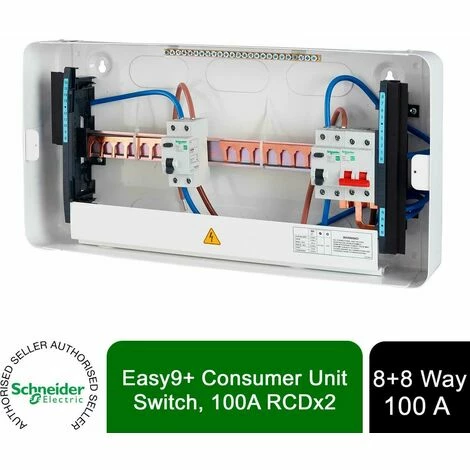

Schneider Electric Easy9+ 8+8 100A Switch, 100A RCDx2 Consumer Unit

The Schneider Electric consumer unit provides high quality, user-friendly design. It is reliable and robust circuit protection. It has multiple cable entry points and has a metal surface. Its colour is white and it also has a reversible door. Secure raised DIN rail Earthed front cover

Features:

• The split load configuration option ensures mainstream applications can be catered for with a single consumer unit
• 100A Main Switch Disconnector
• Rigid metal DIN rail to avoid flexing and raised for cabling flexibility
• Earth and neutral blocks fitted as standard
• Multiple cable entry points and knock out slots
• Secure raised Busbar shield
• Earthed front cover
• Reversible door
• IP3X

Specifications:

• Board Configuration: 8 + 8
• Colour: White
• Current Rating: 100A
• Door Type: Bottom Hinged
• Incoming Device: 100A Isolator
• Material: Metalclad
• Mounting: Surface
• Number of Modules: 22
• Number of Outgoing Ways: 16
• Product Range: Easy9+
• Rcd Rating: 100A
• Rcd Type: AC
• Surge Protection Fitted: No
• Surge Protection Ready: No
• Voltage Rating: 230V
• Voltimum+Points: 259

Package Includes: 1x Schneider Electric Easy9 Consumer Unit
