Schneider Electric Easy9+ EZ9ER6R6CMCU Consumer Unit 6+6 Main Switch 2x 100A RCD

Features

• Voltage: 230.0
• Material: Metal
• Colour: White
• Shape: Point
• Location: Door
• Power source: Cabled
• Fixing method: Projection, applique
• Installation: DIN rail
• Electrical connectivity type: DIN

Schneider Electric Easy9+ 6+6 100A Switch, 80A RCCB x 2

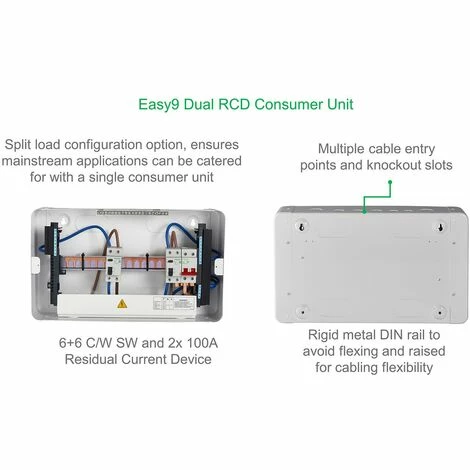

The Schneider Electric EZ9ER6R6CMCU is a 6 + 6 Dual 100A residual current device, Metal Clad Consumer Unit

Features:

• Supplied with 2 x 100A 30mA RCDs and 1 x 100A DP isolator

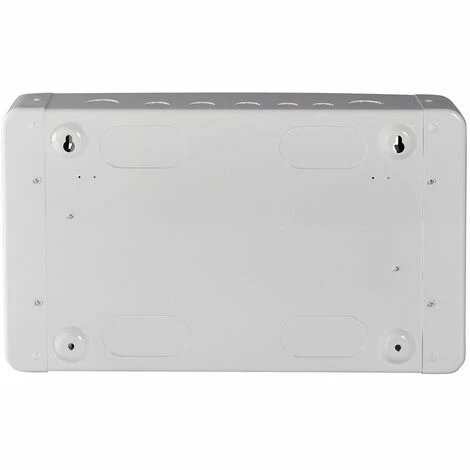

• Multiple cable entry points and rear knock out slots
• Fixing holes with level adjustment
• Securely fixed DIN rail

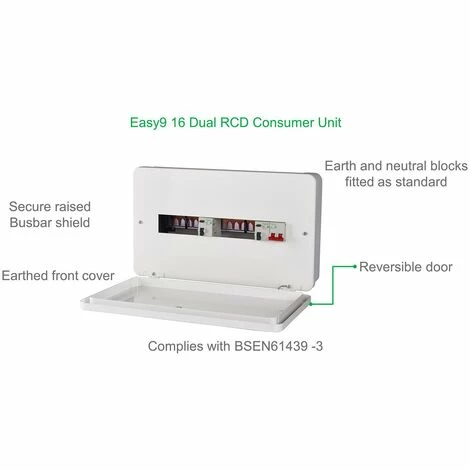

• Earth terminal block and neutral terminal blocks fitted as standard
• Secure busbar shield
• Reversible door
• Complies with Amendment 3 regulations

Specifications:

• Board Configuration: 6 + 6
• Colour: White
• Current Rating: 100A
• Door Type: Bottom Hinged
• Incoming Device: 100A Isolator
• Material: Metalclad
• Mounting: Surface
• Number of Modules: 18
• Number of Outgoing Ways: 12
• Packaging Types: Each
• Product Range: Easy9+
• Rcd Rating: 100A
• Rcd Type: AC
• Surge Protection Fitted: No
• Surge Protection Ready: No
• Tripping Sensitivity: 30mA
• Unspsc: 39121110
• Voltage Rating: 230V
• Voltimum+Points: 257

Package Includes: Schneider Electric Easy9+ 100A Switch 80A and x 2 Residual Current Device
