Schneider Electric Easy9+ EZ9ER4R4MCU Consumer Unit 4+4 100A Main Switch 2x 63A

Features

• Thickness: 1.8
• Voltage: 240.0
• Material: Metal
• Colour: Green
• Location: Door
• Power source: Cabled
• Fixing method: Projection, applique
• Installation: DIN rail
• Electrical connectivity type: DIN

Schneider Electric Easy9+ 4+4 100A Switch, 63A RCD x 2

The fully compliant BS7671 Amendment 3 metal enclosure and magnetic door closure provide a consistent design. The new-look enclosure is cross-compatible with the existing range of devices. The high-quality material also prevents any flex or distortion when mounting to uneven surfaces.

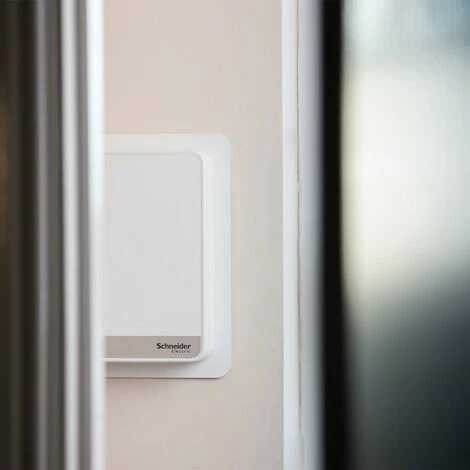

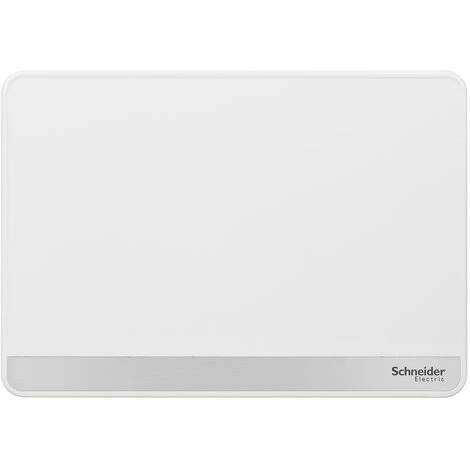

Central fixing points enable the door to open from top or bottom, providing flexibility and increased installation options. Can be flush mounted, reducing obtrusion into living and communal spaces. This allows for a more compact install particularly when space is limited but the unit needs to be easily accessible for the end-user. The enhanced look also lends itself to modern interiors, especially when combined to include the customisable front face.

Features:

• Easy9+ offers a conventional busbar system.
• Enclosure: can be modified to suit split and configuration on-site
• Flexible split load configuration option: ensures mainstream applications can be catered for with a single consumer unit
• Rigid metal DIN rail: solid to avoid flexing and raised for cabling flexibility
• Secure busbar guard: requires a tool for removal, ensuring more safety for you
• New MCB style blanking module: additional end-user safety feature, requiring enclosure cover to be removed first

Specifications:

• Enclosure mounting: Flush Surface
• Number of 18 mm modules per row: 8
• Total number of 18 mm modules: 8
• Number of horizontal rows: 1
• Number of ways: 8 ways
• Enclosure material: Metal
• rated current: 100 A
• rated operational voltage: 230/240 V
• Network frequency: 50 Hz
• Cable entry: Knock-out
• Cable cross-section: 1…25 mm² incoming

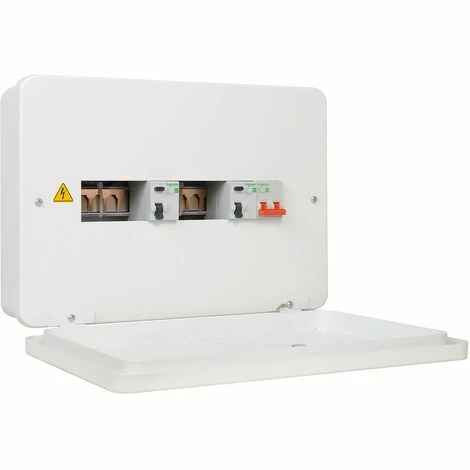

Package Includes: Schneider Electric Easy9+ Consumer Unit with 1x Main Switch and 2x Residual Current Device
