Schneider Electric Easy9+ EZ9EFS12CMCU 12 Way Flexible Main 2x100A RCD Metal

Features

• Voltage: 230.0
• Material: Metal
• Colour: White
• Shape: Point
• Location: Door
• Power source: Cabled
• Fixing method: Projection, applique
• Installation: DIN rail
• Electrical connectivity type: DIN

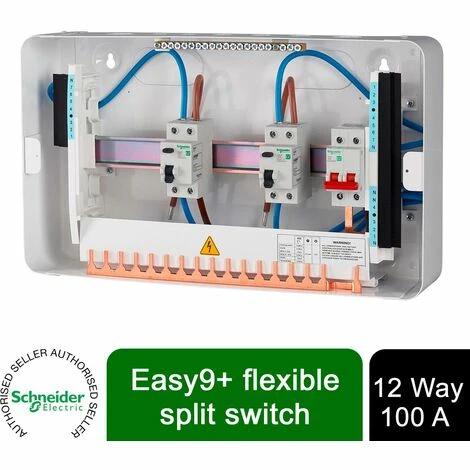

Schneider Electric Easy9+ Flexible Split 12 way 2x100A RCD Metal Switch

Schneider Electric Easy9+ flexible split 12 way 100A switch is BSEN61439 -3 Compliant, It has 100A Main Switch Disconnector and flexible split load configuration option. It ensures mainstream applications can be catered for with a single consumer unit. With rigid metal DIN rail, it avoids flexing and is raised for cabling flexibility.

Features:

• Supplied with 2 x 100A 30mA RCDs and 1 x 100A DP isolator

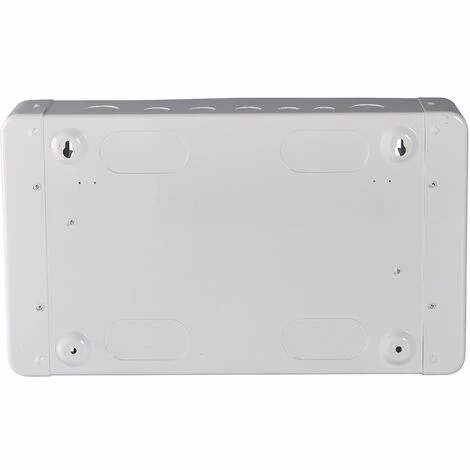

• Multiple cable entry points and rear knock out slots
• Fixing holes with level adjustment
• Securely fixed DIN rail
• Earth terminal block and neutral terminal blocks fitted as standard
• Secure busbar shield
• Reversible door
• Complies with Amendment 3 regulations

Specifications:

• Board Configuration: Configurable
• Colour: White
• Current Rating: 100A
• Door: Type Bottom Hinged
• Incoming Device: 100A Isolator
• Mounting: Surface
• Number of Modules: 18
• Number of Outgoing Ways: 12
• Product Range: Easy9+
• Surge Protection Fitted: No
• Surge Protection Ready: No
• Voltage Rating: 230V

Package Includes: Schneider Electric Easy9 Flexible Consumer Unit with 12 Way 1x Main Switch & 2x Residual Current Device
