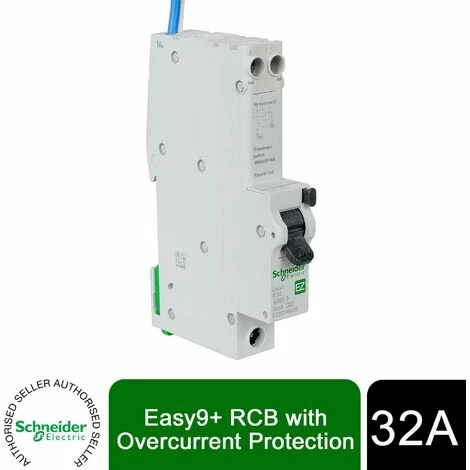

Schneider Electric Easy9+ EZ9D16832 RCBO Circuit Breaker 32A 30mA Type A B Curve

Features

• Length: 100.0
• Voltage: 230.0
• Material: Plastic
• Colour: White
• Shape: Rectangular
• Power source: Cabled
• Breaking capacity: 6.0
• Amperage: 32.0

Schneider Electric Easy9+ EZ9D16832 RCBO Circuit Breaker 32A 30mA Type A B Curve

The Earth Reference Cable “FE” enables RCD to protect users from electric shocks, even in case of supply neutral loss, neutral conductor breakage or supply voltage drop (FE= Functional Earth).

Features:

• Type A, 30mA Earth leakage protection
• B Curve
• 6kA Breaking Capacity
• Provides protection from short circuits, the cables from overloads and persons from electric shocks by direct contact
• Operating test button (T) on the front panel
• Fault tripping indication on the front panel
• Cable length 1000mm
• BSEN61009-1 Compliant

Specifications:

• Colour: White
• Current Rating: 32 amps
• Current Type: AC
• Included Components: RCBO
• Input Voltage: 230 volts
• Item Shape: Rectangular
• Material: Plastic
• Maximum Current: 32 amps
• Maximum Frequency: 50 hertz
• Maximum Input Voltage: 230 volts
• Nominal Current: 32 amps
• Nominal Voltage: 230 volts
• Operating Voltage: 230 volts
• Output Current: 32 amps
• Required Voltage: 230 volts
• Size: 32A
• Specification Met: BS EN 61009-1
• Style: Easy9 Circuit Protection
• Supply Current: 32 amps
• Supply Voltage: 230 volts
• Voltage: 230 volts

Package Includes: Schneider Electric Easy9 – RCBO Residual Circuit Breaker
