Easy9+ 12 Way Surface Mount Metal Consumer Unit EZ9E12MCU, Schneider Electric

Features

• Voltage: 230.0
• Amperage: 100.0
• Colour: White
• Shape: Rectangular
• Location: Door
• Power source: Cabled
• Fixing method: To build into
• Installation: DIN rail
• Electrical connectivity type: DIN

Easy9+ 12 Way Surface Mount Metal Consumer Unit EZ9E12MCU, Schneider Electric

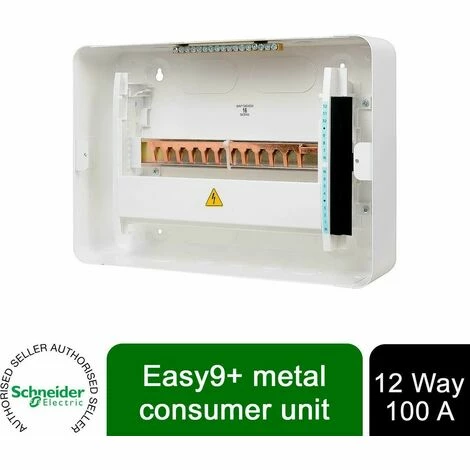

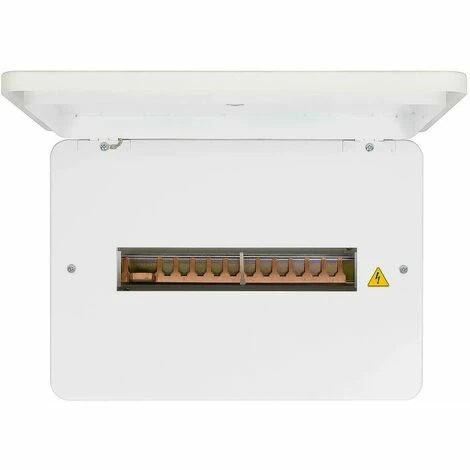

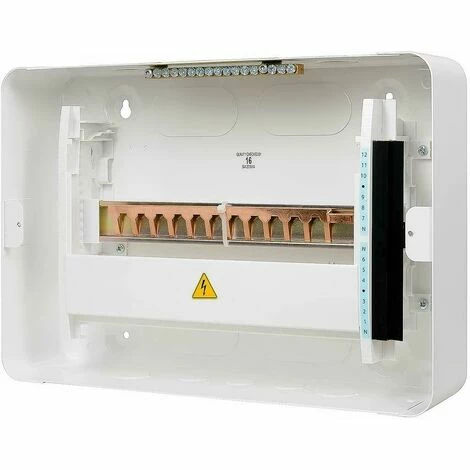

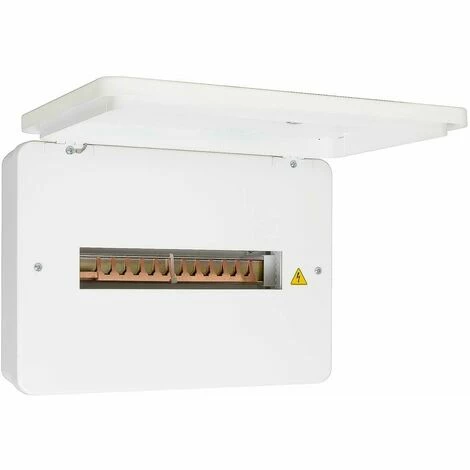

The Schneider Electric EZ9E12MCU is a 12 usable way metal consumer unit that is compliant with BS 7671:2008, Amendment 3 (2015). All main incomers, miniature circuit breakers and residual current devices are sold separately. The Schneider Electric Easy9+ metal consumer units can be surface mounted or recessed, are fitted with earth, neutral blocks and a secure raised DIN rail and has an earthed front cover. The Easy9+ metal consumer unit enclosures have multi-cable entry points, rear knock out slots, a reversible door and is finished in white (RAL9003).

Features:

• Empty consumer unit supplied with earth/neutral terminal block
• Secure raised busbar shield
• Can be mounted horizontally or vertically
• Rigid metal DIN rail to avoid flexing and raised for cabling flexibility
• Earthed front cover
• Multiple cable entry points and rear knock out slots
• BSEN 61439-3 Compliant

Specifications:

• Colour: White
• Included Components: Enclosure & accessories pack
• Input Voltage: 230 volts
• Item Shape: Rectangular
• Material: Steel
• Maximum Frequency: 50 hertz
• Maximum Input Voltage: 230 volts
• Mounting Type: Surface mount
• Nominal Voltage: 230 volts
• Operating Voltage: 230 volts
• Required Voltage: 230 volts
• Size: 12 way
• Specification Met: BS EN 61439-3
• Style: Easy9 Consumer Unit
• Supply Voltage: 230 volts
• Voltage: 230 volts

Package Includes: 1x Schneider Electric Easy9+ 12 Way Metal Consumer Unit
